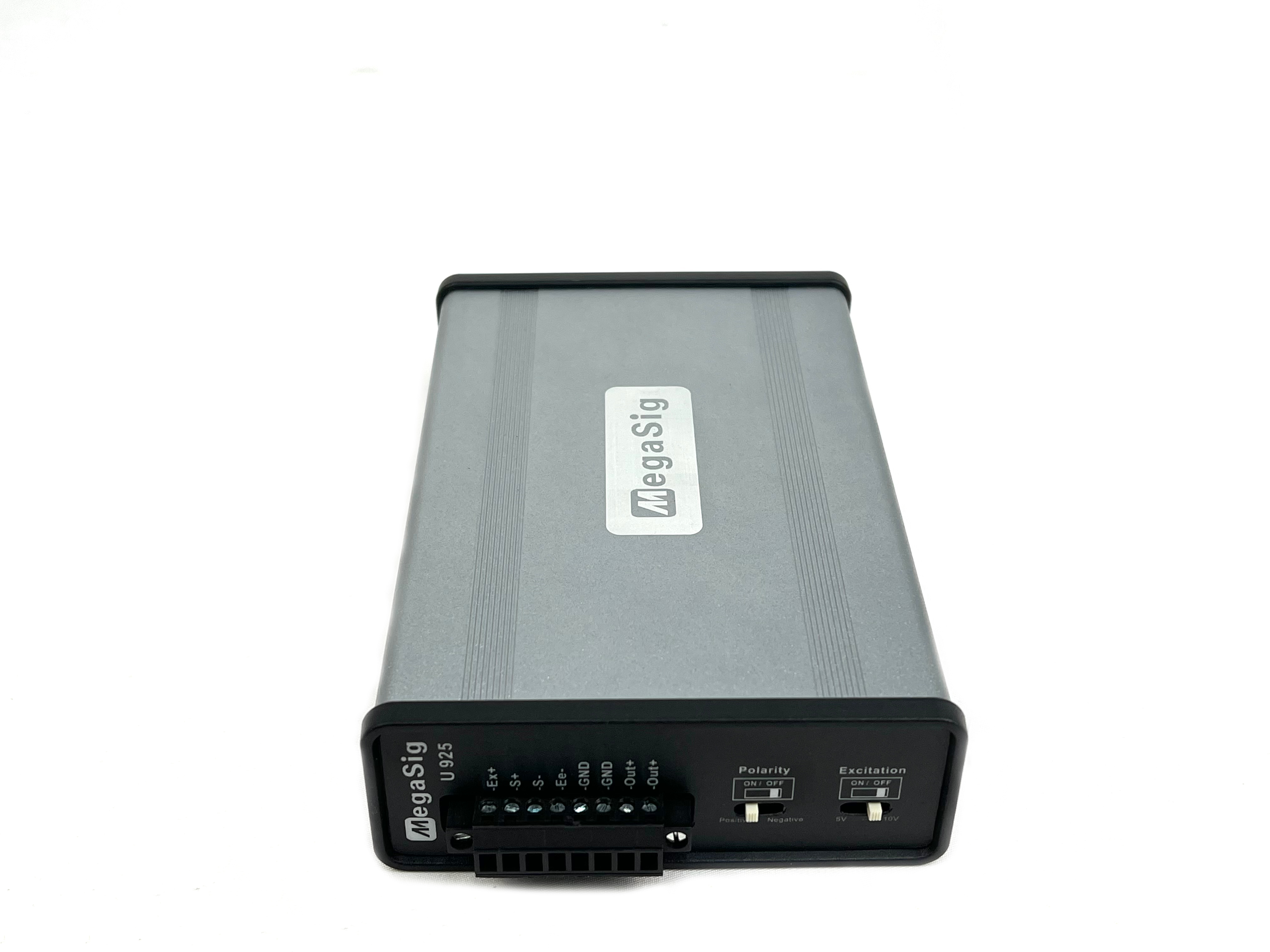

U 925

  • 1ch,Full Bridge,100kBW

  • U 925 is designed for full bridge signal conditioning, supports strain sensor, force sensor and other bridge sensor.


    The product has high amplify accuracy, adjustable excitation voltage, adjustable gain and high bandwidth.


    Just use a multi-channels data acquisition card, by U serials, can realize multi-types sensor system, reduce the the data acquisition system cost, improve the flexibility of data acquisition system.


  • Description
  • Download

Description


Specifications

Parameters

Output Voltage

5V

Output Impedance

1ohm

3dB Bandwidth

At a typical gain of 10mV/V, the bandwidth is wider than 100kHz，For other gains, the bandwidth is wider than 25kHz

Bridge Circuit

Full Bridge

Supports Bridge Resistance

350Ω - 5000Ω

Amplification GainDIP Hardware Switch Adjustable At 50, 100, 150, 200, 250, 300, 350, And 400 Times

Input-Output Delay

Typical At x200, Less than 1us

Signal Interface

Insertion Clamp Style

Status Light

Power

Power Supply

24VDC

Dimension mm

96*33*140（W*H*L）

Working Temperature

0 - 60℃
