SS 776

Ultra-high frequency microphone kit, 80kHz

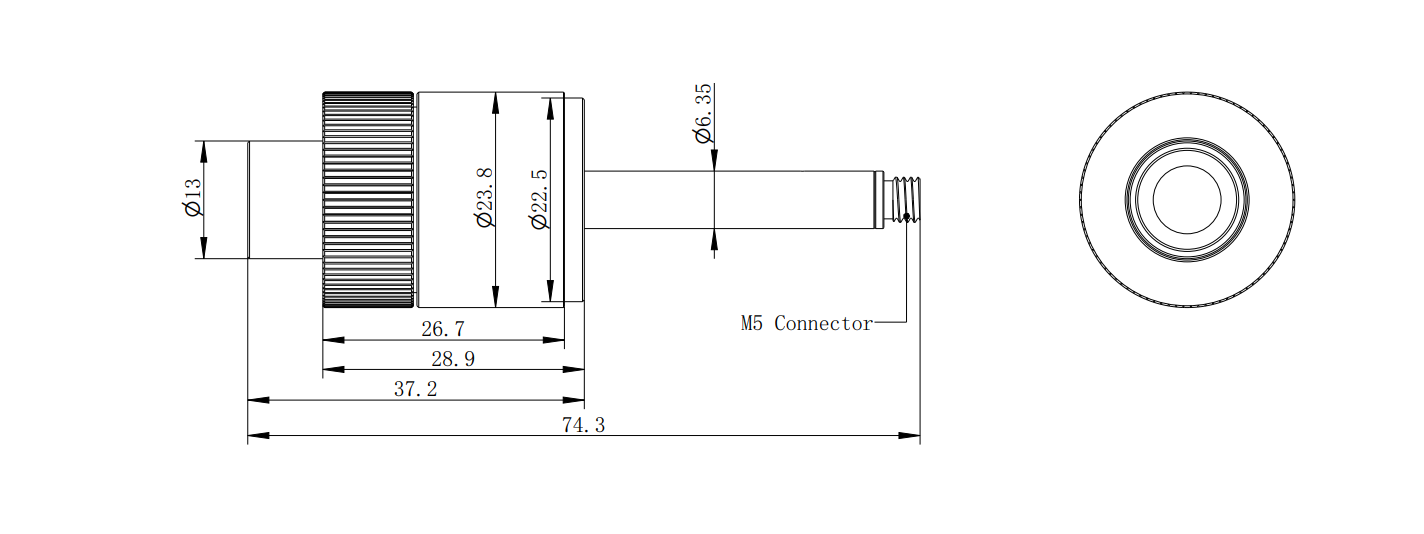

Ultra-high frequency (UHF) artificial ear is an ear simulator that simulates the way that an earplug catheter is inserted into the ear canal or auricle, and the acoustic performance of the earphone is measured by simulating the
coupling between the earphone and the human ear. The SS 776 uses a 1/4 inchmicrophone internally. The coupling cavity and preamplifier are integral andnon-detachable. It is a prepolarized pressure field measurement microphonekit.
The SS 776 is positioned as a cost-effective high frequency microphone forultrasonic acoustic measurement, specifically for in-ear headphone productaudio production line testing. With MegaSig PM 0083 IEPE signal conditionerfor t he best test results.

Description

Specifications

Parameter	Value
Sound Field Type	Pressure field
Earphone Type	入耳式
Coupler Volume	/
Frequency Response	100Hz – 10kHz ± 1dB 10kHz – 20kHz ± 2.2dB 20kHz – 50kHz ± 3.2dB 50kHz – 80kHz ± 4dB
Dynamic Range	50dB（A）-162dB （1000 Hz 失真<3%）
Noise Floor	50dB（A）
Sensitivity	1.6mV (-56.0dB) ± 2dB
Standard	/
Connector	Microdot（M5）
Operating Temperature	-20°C to 60°C
Relative Humidity	10- 90% no condensation

Specifications

Types of Acoustic Fields	Pressure Field
Polarization voltages	0V（Prepolarized）
Frequency range	100Hz – 10kHz ± 1dB 10kHz – 20kHz ± 2.2dB 20kHz – 50kHz ± 3.2dB 50kHz – 80kHz ± 4dB
Dynamic range	50dB（A）- 162dB（1000 Hz THD<3%）
Background noise	50dB（A）
Sensitivity mV/Pa(dBV/Pa)	1.6mV (-56.0dB) ± 2dB
Maximum Output Voltage	5.6V
Output Impedance	<50Ω
Power Supply	2mA - 10mA（typical 4mA）
Pressure Equalization Method	Post-equalization
Connection	Microdot（M5）
Temperature range, operation	-20℃ to 60℃
Temperature range, storage	Temperature：25℃±5℃，Humidity：50%±15%RH（Ensure the long-term stability of the sensor）
Humidity range non condensing	10 - 90% without condensation
Humidity coefficient	<0.1dB
