BNC plug to BNC plug standard cable
BNC plug to BNC plug standard cable

103A

  • BNC plug to BNC plug standard cable

  • BNC plug to BNC plug standard cable, specially designed for audio systems, with a characteristic impedance of 50 ohms. The cable features a copper wire core for stable transmission, with an outer diameter of 4.9mm and made of black PVC material. It is highly flexible and durable.

    This cable is widely used in audio testing systems, connecting amplifiers, speakers, sensors, and other devices.


  • Description
  • Download

Description


Specifications

Cable Length

0.7m、1.5m、3m、6m、9m、12m，Custom Cable Length

Temperature Range

-60℃ - 200℃

Impedance

50Ω

Connector Type

BNC Plug to BNC Plug

Strain Relief

PVC Molded Boot
Cable Specifications

Coaxial Cable, Inner Core of Copper Wire + LDPE Insulation + Black PTFE Tape + Braided Shielding, Cable Jacket Black PVC OD:4.9mm±0.1mm

Order Information

PNModelDescribe
730003-000103ABNC Plug to BNC Plugs,cable jacket diameter 4.9mm,black PVC cable,temperature resistance 60℃，Customizable length
730003-015103A015

BNC Plug to BNC Plugs,cable jacket diameter 4.9mm,black PVC cable,temperature resistance 60℃， length 1.5m

730003-030103A030BNC Plug to BNC Plugs,cable jacket diameter 4.9mm,black PVC cable,temperature resistance 60℃，length 3.0m
730003-060103A060BNC Plug to BNC Plugs,cable jacket diameter 4.9mm,black PVC cable,temperature resistance 60℃， length 6.0m
730003-090103A090BNC Plug to BNC Plugs,cable jacket diameter 4.9mm,black PVC cable,temperature resistance 60℃，length 9.0m
730003-120103A120BNC Plug to BNC Plugs,cable jacket diameter 4.9mm,black PVC cable,temperature resistance 60℃，length 12.0m

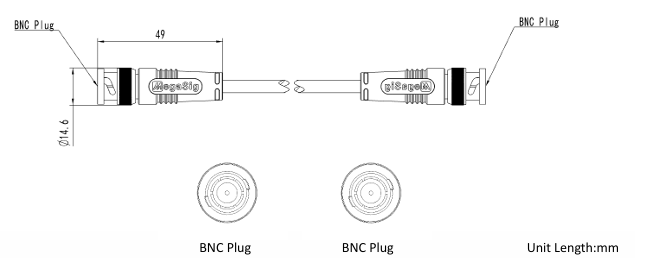

Dimensions
