4-socket jack to (3) BNC plugs low noise cable
4-socket jack to (3) BNC plugs low noise cable

403A

  • 4-socket jack to (3) BNC plugs low noise cable

  • 4-socket jack to (3) BNC plugs (labeled X Y Z) low noise cable, designed for sensor testing. High shielding cable, stable transmission, four core with an outer diameter of 2.4mm made of blue PVR material, fine wire diameter, high flexibility.

    This cable is widely used in audio testing systems, connecting amplifiers, speakers, sensors, and other devices.


  • Description
  • Download

Description


Specifications

Cable Length

1.5m、3m、6m、9m、12m，Custom Cable Length

Temperature Range

-40℃ - 95℃

Connector Type

1/4 28 Thread,4-Socket Jack to (3) BNC Plugs

Strain Relief

PVC Molded Boot

Cable Specifications

Four-Conductor Cable, Inner Core of Tin-Plated Copper Wire + TPEE Insulation + Braided Shielding, Cable Jacket Blue PVR OD:2.4mm±0.05mm

Ordering Information

PNModelDescription
730015-015403A0154-socket jack to (3) BNC plugs ,cable jacket diameter 2.4mm,blue PVR cable,temperature resistance 95℃Length 1.5m
730015-030403A030Length 3.0m
730015-060403A060Length 6.0m
730015-090403A090Length 9.0m
730015-120403A120Length 12.0m
730015-000403ACustomizable length

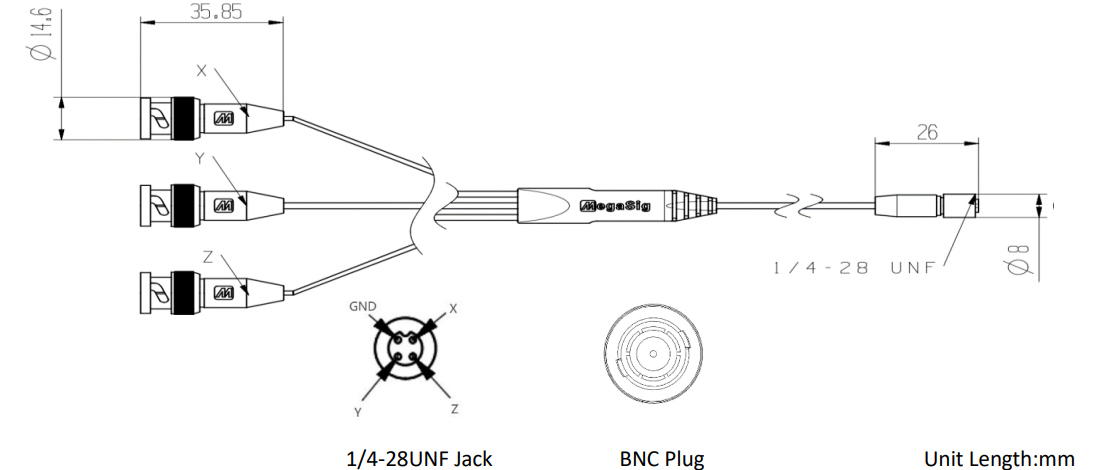

Dimensions（unit：mm）
