Standard Microphone Fixture
Standard Microphone Fixture
Standard Microphone Fixture
Standard Microphone Fixture

LH 006&LH 007

  • Standard Microphone Fixture

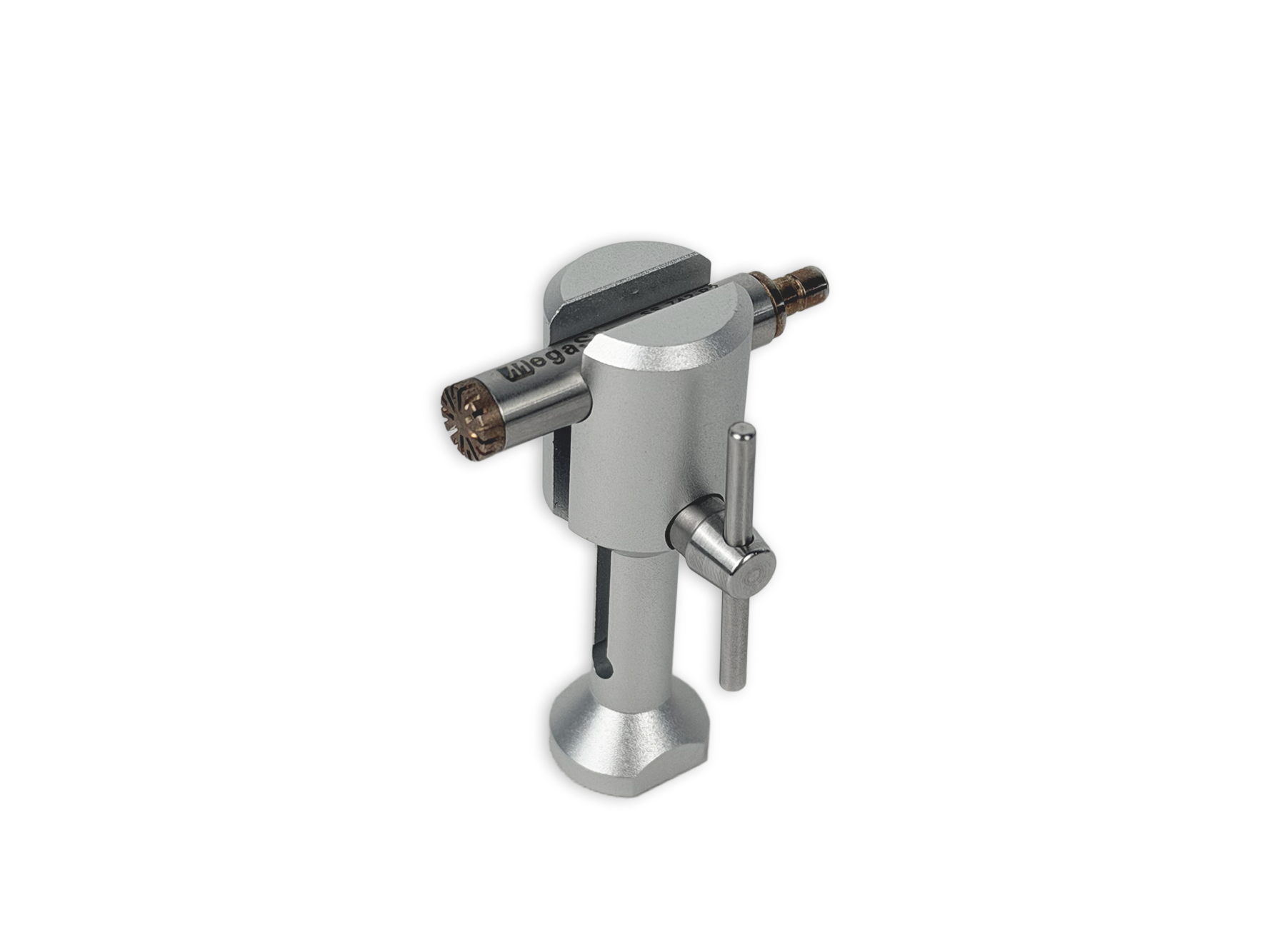

  • The LH 006 (1/2") and LH 007 (1/4") are designed for standard microphones. Its circular design minimizes reflections during use. The manual tightening mechanism on the side provides a stable and robust structure, is easy to use, and significantly reduces installation workload. A standard tripod thread is incorporated into the bottom, allowing it to be mounted on a tripod.

    The actual purchased LH 006 and LH 007 unit does not include the microphone.


  • Description
  • Download

Description

Specifications

Specifications


 LH 006LH 007
Dimensions1/2-inch1/4-inch
Height55mm
55mm
Width25.9mm25.9mm
Weight17g
20.5g
MaterialAluminum oxide alloy、304 stainless steelAluminum oxide alloy、304 stainless steel

Dimension（unit：mm）

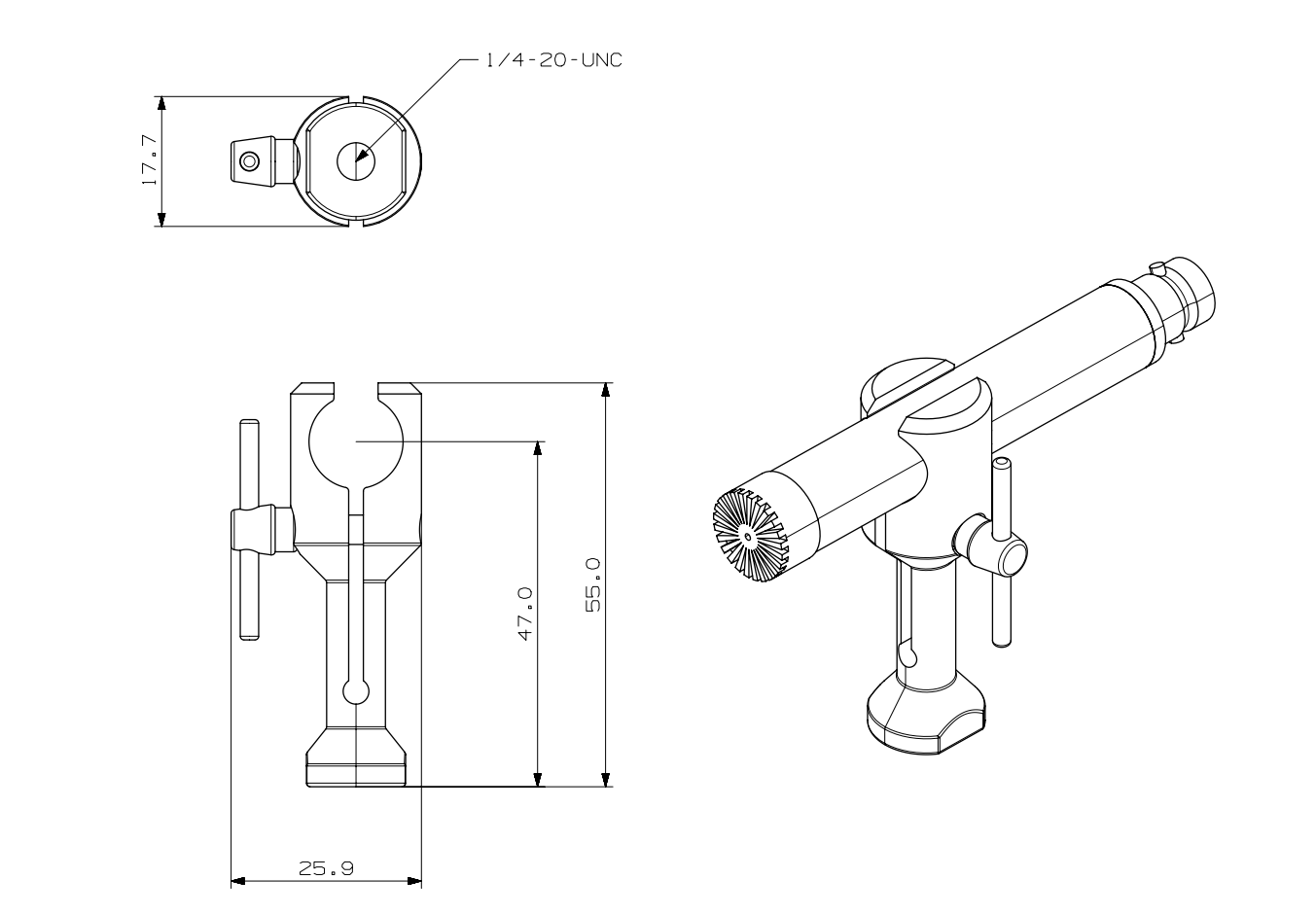

LH 006

LH 006二分之一标麦夹具.png

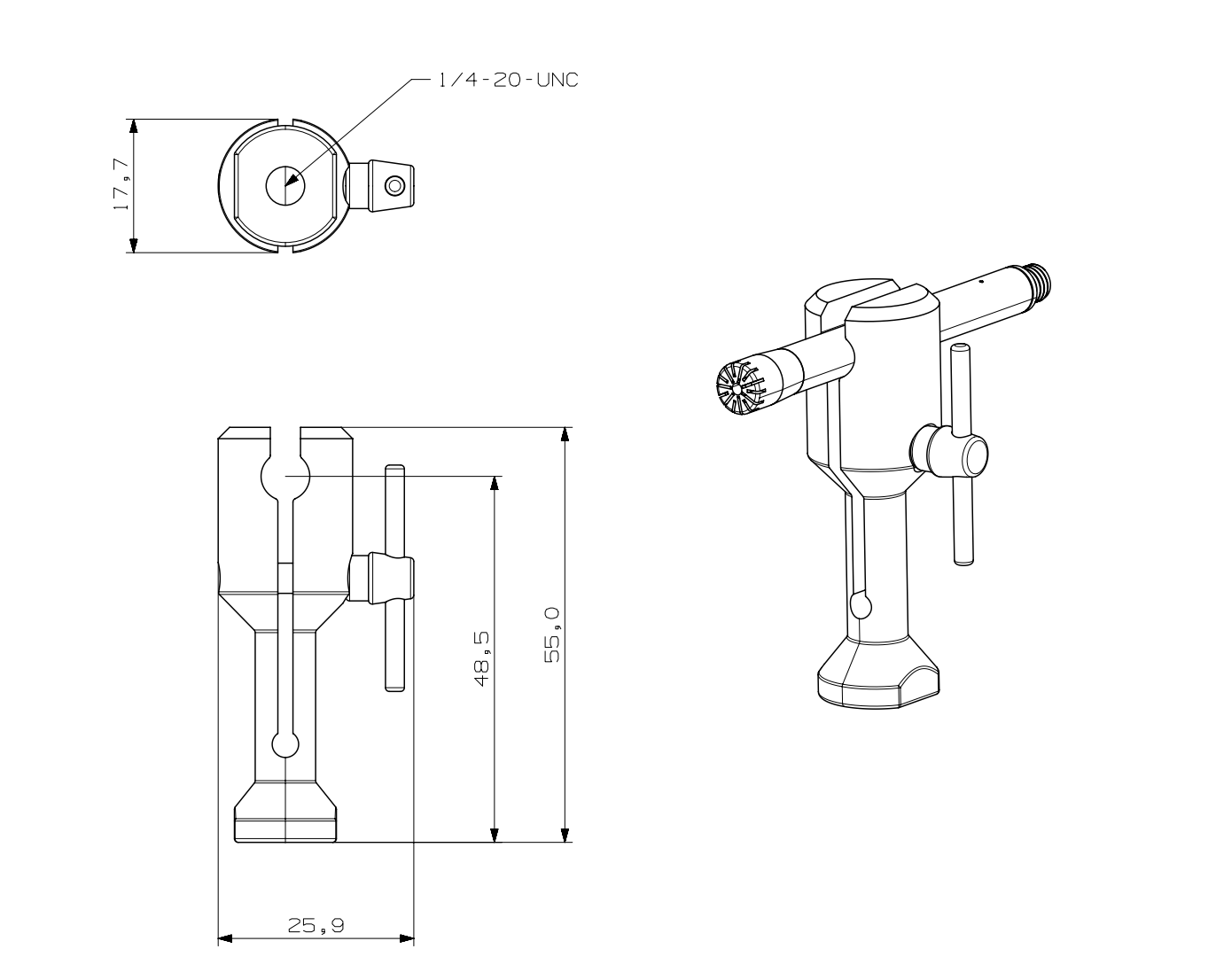

LH 007

LH 007 四分之一尺寸图.png
