2-Socket MIL-C-5015 Jack to BNC Plug General Cable
2-Socket MIL-C-5015 Jack to BNC Plug General Cable

WC103AA

  • 2-Socket MIL-C-5015 Jack to BNC Plug General Cable

  • 2 Socket MIL-C-5015 Jack to BNC Plug General Cable, specialized cable for audio systems, with a characteristic impedance of 50 ohms.The cable features a stable copper wire core for reliable transmission, a 4.9mm outer diameter, and a black PVC sheath. It offers high flexibility, durability, and long service life.

    Applications: Widely used in audio testing systems to connect devices such as amplifiers, speakers, and sensors.


  • Description
  • Download

Description

Specification

Cable Length

1.5m、3m、6m、9m、12m，Custom cable length

Temperature Range

-15℃ - 60℃

Impedance

50Ω

Connector Type

2-socket MIL-C-5015  Jack to BNC plug connector

Strain Relief

PVC Molded Boot
Cable Specifications

Coaxial design featuring copper wire core + LDPE insulation + black PTFE tape wrap + braided shielding

Cable jacket: black PVC, OD: 4.9mm ±0.1mm

Ordering Information

PNModelDescription
730030-015WC103AA0152 Socket MIL-C-5015 Jack to BNC Plug ，cable with 4.9mm outer diameter in black PVC, highly flexible, temperature rated to 60°C length 1.5m
730030-030WC103AA030length 3.0m
730030-060WC103AA060length 6.0m
730030-090WC103AA090length 9.0m
730030-120WC103AA120length 12.0m
730030-000WC103AACustomizable length

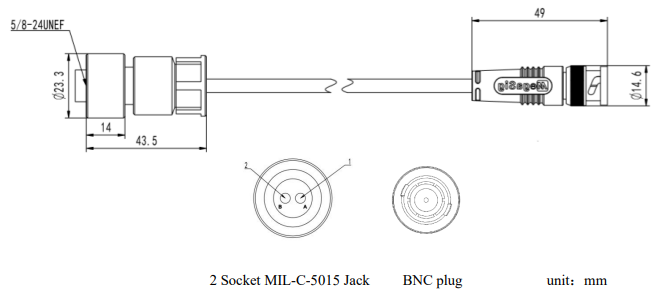

Mechanical Dimensions(unit:mm)

Dimensions
