CNF 701 is a piezoelectric dynamic force sensor with a ring-shaped through-hole design. It employs a high-stability quartz crystal as the sensing element. With its compact dimensions, it is suitable for measuring both compression and tension forces.
F 701 is a charge-output type sensor. It is typically used with the MegaSig A 821 charge preamplifier, delivering excellent performance. It is ideal for various mechanical equipment, robotic force measurement systems, and dynamic bolt load monitoring applications.
Specification
Parameters | |
Measurement range | 0 - 20kN |
Sensitivity（±15%） | 4.3pC/N |
Upper frequency limit | 20000Hz |
| Insulation resistance | 10GΩ |
Operating temperature range | -40℃ - +120℃ |
| Nonlinearity | ±1% FS |
Overload | 25kN |
IP rating | IP67 |
| Connector type | Micordot (M5) |
| Housing material | Stainless steel |
| Weight | ＜8.5g |

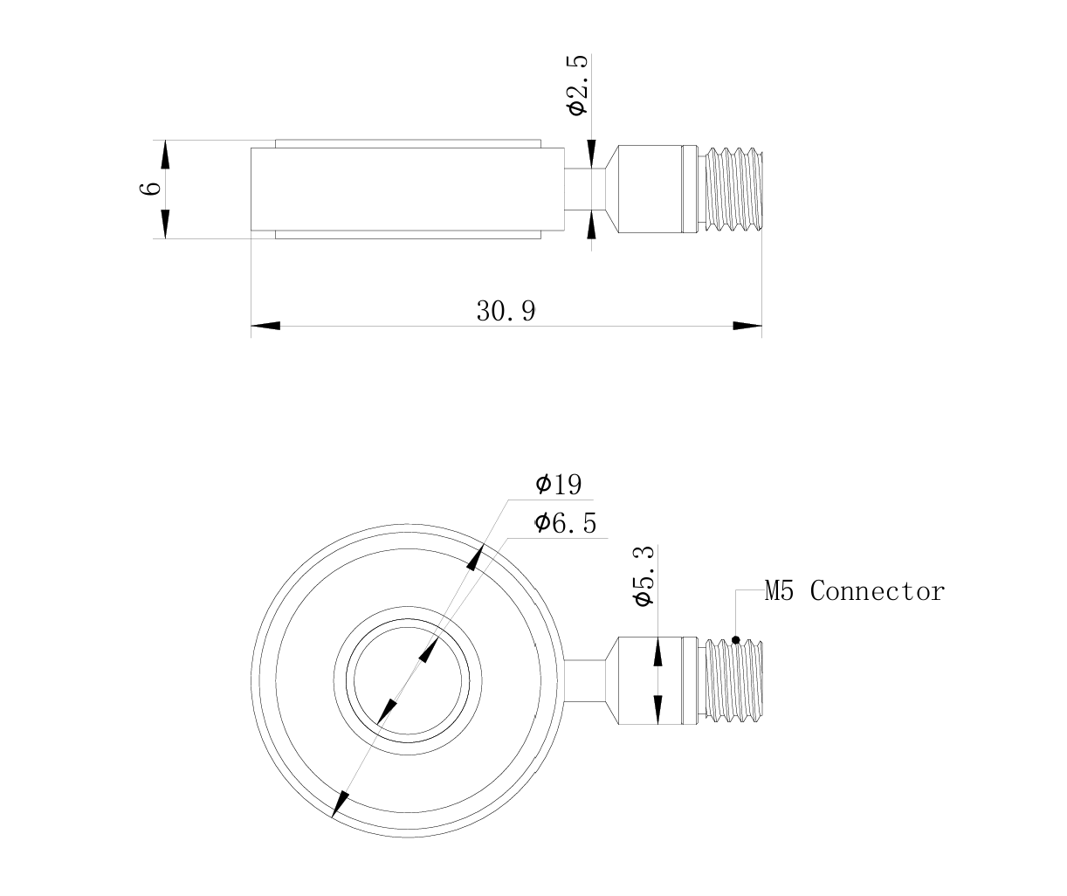

Dimensions（unit：mm）
Ordering Information
| PN | Model | Description |
| 900016-02 | F 701 | Piezoelectric dynamic force sensor |
| 900010-21 | A 821 | Charge preamplifier |
