AB 04

Automatic shielding box(W)750
AB 04 is a medium size shielding box designed specifically for audio and RF testing of consumer electronics production lines. The goal is to provide a stable acoustic environment for audio testing of products. At the same time, the outer chamber is made of full sheet metal to ensure good electromagnetic shielding
AB 04 is applied to the occasions that require excellent rf isolation and ensure a better acoustic environment than the pure RF shielding box. 2 layers of complex sound insulation layer is realized on the limited wall thickness, and the sound insulation flannelcloth is used as the surface layer, which solves the unstable problem caused by the aging and damage of the wedge in the process.
This box is designed with 3 groups (6 channels) of air paths, which can meet the demand of automatic driving action in the box in the application of production line.

Description

Specifications

Parameters

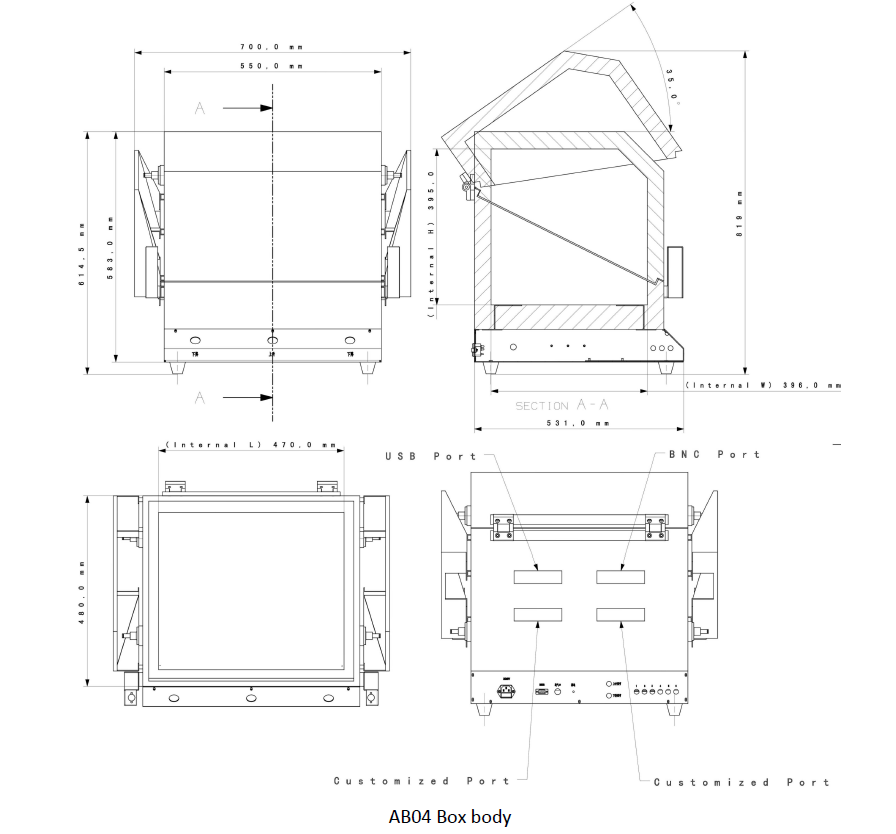

Outer Dimensions (Excluding Cabinet, Cylinder)	(W)550(L)670(H)580mm±5mm
Inner Dimensions	(W)410×(L)470×(H)395mm±5mm

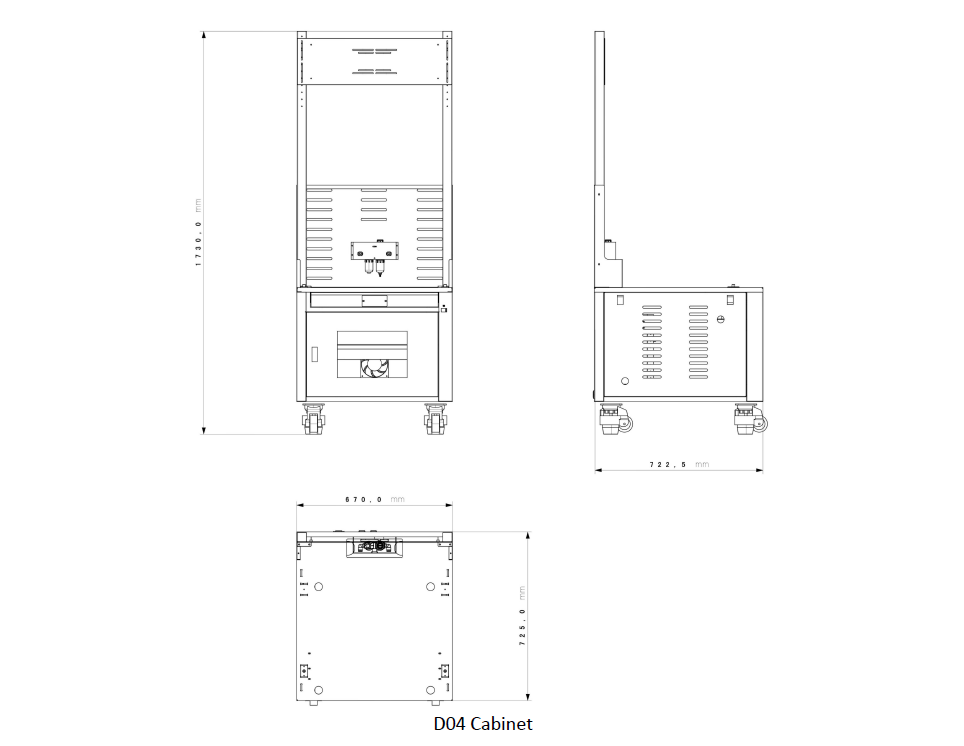

Overall dimensions (Shielded Box + Cabinet）	(W)730×(L)670×(H)1700mm±5mm
Isolation Degree	Audio: Outside 85dBA, Internal≤ 48dBA RF: 100M ~ 6G , Isolation≥ 55dB
Operating Voltage	220V
Number of BNC Connectors	Default 1 terminal (with 4 BNC channels) Customization to increase
Number of USB Connectors	Default 1 terminal (with 2 USB channels) Customization to increase
Number of 3.5mm Connectors	One(Support customization)
DC Interface	One(Support customization)
Ethernet Interface	Six(Support customization)
Switch Type	Dual Cylinder
Programmable Control	Supported

Typical application scenarios

Application scenarios
Consumer electronic	Bluetooth Earphone Audio Test ANC headphone audio test Mobile audio comprehensive testing Single unit electroacoustic audio testing
Electrical machinery	Sound quality testing based on motor Order analysis testing based on motor
Automotive Electronics	A2B Car Audio Bus Amplifier Test A2B Car Audio Bus Car Machine Test
