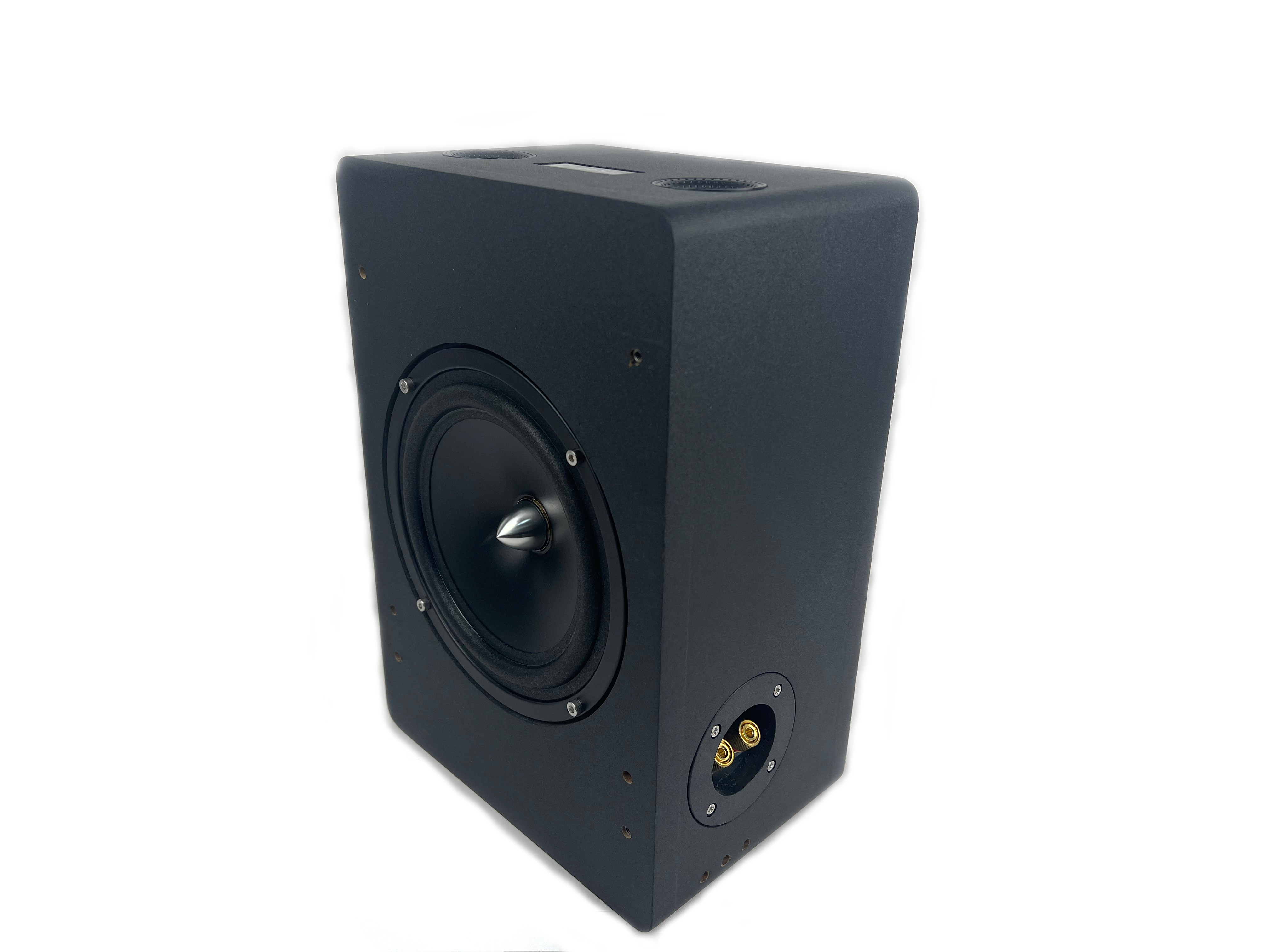

SB 05

  • Far-field measurement sound source

  • SB 05 is a sound source specially designed for far-field audio testing of consumer electronics production lines. It is low-frequency enhanced and suitable for audio testing with low frequency requirements, such as ANC earphone testing.
    The unique compression design of the rear cavity, coupled with the long stroke linear displacement design of the horn monomer, provides a strong guarantee for the full frequency band energy response characteristics.

  • Description
  • Download

Description

Specifications

ParameterValue
Distortion100Hz - 10kHz（THD＜5%）； 200Hz - 10kHz（THD＜2%） （1kHz，94dBSPL，400mm处）
F065Hz
Frequency Response Curve经补偿后输出声压94dB±0.1dB （100Hz - 10kHz）
Impedance8ohm
Continuous Maximum Power45W
Speaker Size6.5寸
Outer Dimensions220mm*320mm*150mm
Connector双边香蕉插头


Specifications

Parameters

Dimension mm

220*320*150

F0

65Hz

Rated Impedance

8ohm

Rated Power

45W

Interface

Banana Plug

THD

＜2%（@400mm，1kHz，94dBSPL，200-10kHz）

THD

＜5%（@400mm，1kHz，94dBSPL，100-10kHz）
