8ch IEPE
8ch IEPE

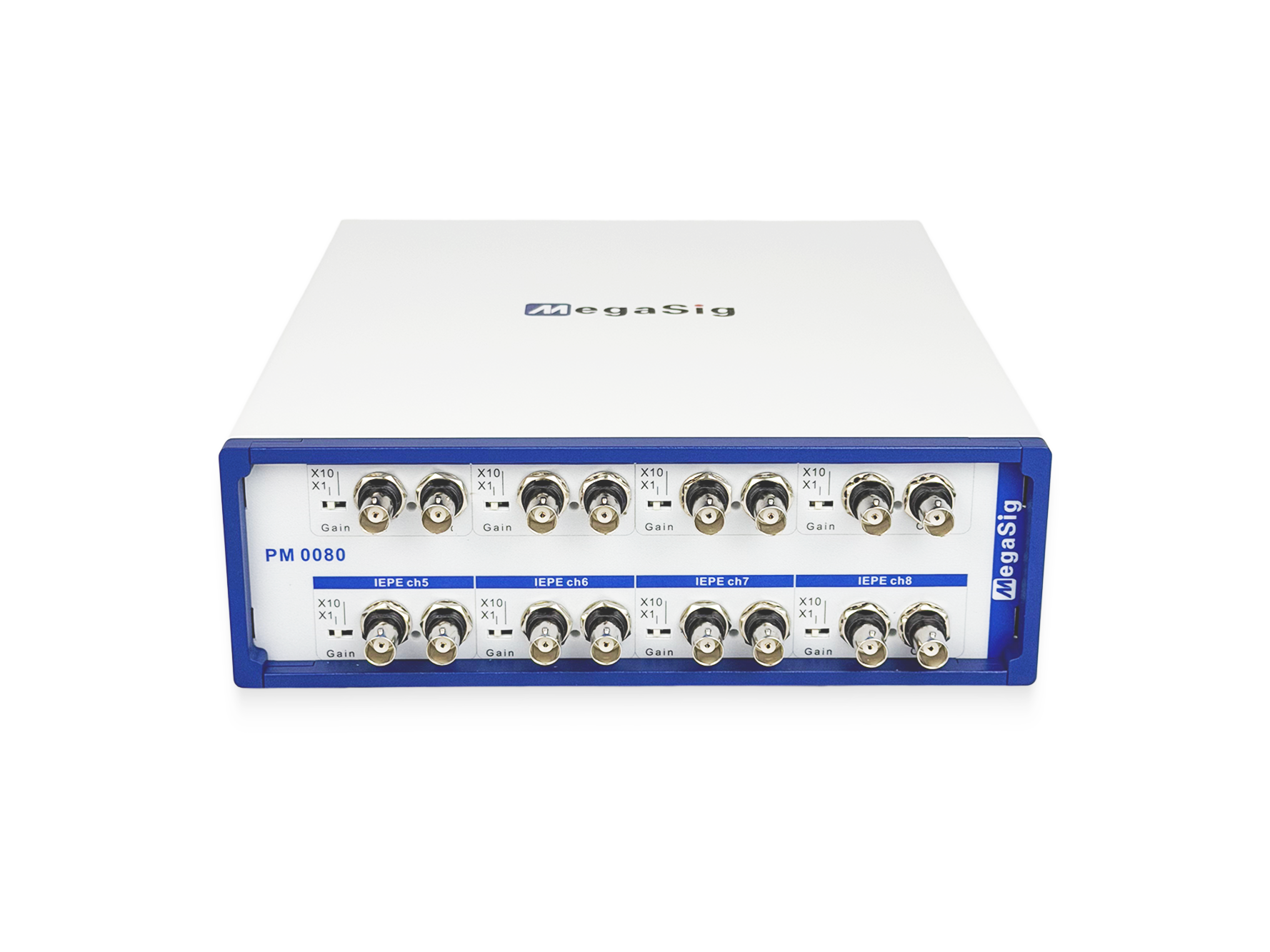

PM 0080

  • 8ch IEPE

  • PM 0080 is a high-density conditioner specifically tailored for production line testing of consumer products. It incorporates an 8-channel, 21V IEPE constant-current source exciter, designed for conditioning IEPE-powered sensors such as microphones, artificial ears, and accelerometers. This product boasts abundant channel resources, adjustable IEPE gain, high input impedance, low output impedance, minimal background noise, and a broad frequency response range.


  • Description
  • Download

Description

Specifications

ParameterValue
IEPE Channels8
Operating Voltage220V
Dimension mm240*270*76.5（excluding interface）
Interface TypeBNC
Working Temperature-20℃ - 50℃

Specifications

IEPE Excitation Source With Audio Amplifier Parameters

Frequency Response

20Hz - 20kHz，flatness better than 0.1dB   5Hz - 80kHz（-3dB）

Background Noise

＜-100dBV

IEPE Constant Current Source

4mA constant current source, capable of driving a maximum load of 10k ohms, providing a 2mA constant current source

Gain

0dB（-1）   +20dB（*10）

THD

0dBGain：<0.0005%   +20dBGain:<0.0005%  (@1kHz, input 0.1VP，8W 20 - 20kHz)

THD +N

0dBGain：<0.01%   +20dBGain:<0.01%  (@1kHz, input 0.1VP，8W 20 - 20kHz)

Status Light

Mic Signal Connection Indicator
