Description
Dimensions（unit：mm）

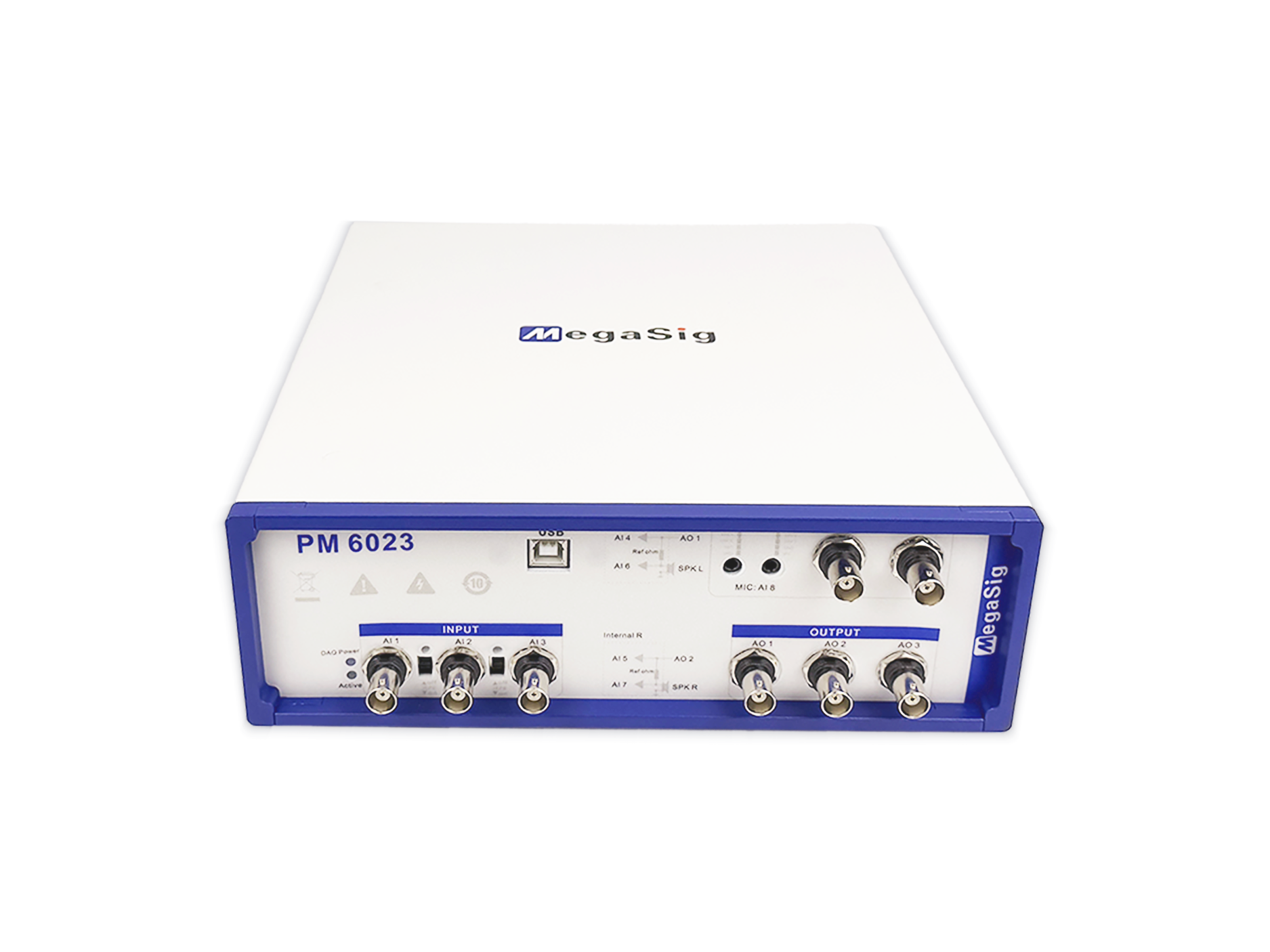

PM 6023 is an audio analyzer for acoustic testing on the production line. It tests speaker drivers, microphone units, and semi-finished speakers and microphones, and it reports the parameters that decide whether a unit ships: frequency response, sensitivity, distortion, impedance, phase and balance.
Eight analog input channels and three analog output channels sit in one chassis measuring 240 × 270 × 76.5 mm. Conversion is 24-bit in both directions and sampling runs from 1 kHz to 192 kHz, with the 20 Hz to 20 kHz band flat to within ±0.2 dB. Noise floor and distortion both stay below -90 dBV.
Two IEPE channels are built into the analog inputs and supply 24 V at 4 mA, so measurement microphones and accelerometers connect without external conditioning. Every output channel carries an 8 W amplifier, which is enough to drive a speaker load directly. A programmable supply module inside the instrument sets output voltage and resistance by command.
Interfaces are BNC and AUX, and the operating temperature range is 0 to 45 °C. PM 6023 works with MegaSig Stinger test software, and a device driver plus a dedicated DLL are supplied for automated stations.
Key Features
8 analog input channels and 3 analog output channels in a single 240 × 270 × 76.5 mm unit
24-bit ADC and DAC with a sampling rate of 1 kHz to 192 kHz
20 Hz to 20 kHz frequency response within ±0.2 dB on both input and output
Noise floor below -90 dBV and distortion below -90 dBV
Input range ±8 Vrms (analog in), output range ±7.5 Vrms (analog out)
2 IEPE channels built into the analog inputs, with a 24 V / 4 mA constant-current supply
8 W amplifier on every output channel, so a speaker load can be driven directly
Programmable supply module: output voltage and resistance set by command
BNC and AUX interfaces
Operating temperature 0 to 45 °C
Runs with MegaSig Stinger software; device identification driver and dedicated DLL included
Applications
PM 6023 is positioned for electroacoustic testing on the line. Typical devices under test:
Speaker drivers (single-unit speakers)
Microphone units and cartridges
Semi-finished speakers
Semi-finished microphones
Typical test items include frequency response, sensitivity, total harmonic distortion (THD and THD+N), impedance, polarity, phase, balance, signal-to-noise ratio and abnormal-sound (Rub and Buzz) screening.
Specifications
General
5.2 Analog input channels
Analog output channels
Software and Downloads
PM 6023 runs on MegaSig Stinger, a virtual-instrument audio test platform for electroacoustic products in both R&D and mass production.
Stinger routine test module: frequency response, phase, sensitivity, signal-to-noise ratio, balance, distortion and impedance
Stinger instrument panel: turns the data acquisition hardware into a signal generator, oscilloscope or multimeter
Stinger test-object settings: device type (for example speaker or microphone), channels, excitation signal, limits, units, data storage and MES parameters
PM 6023 device identification driver
PM 6023 dedicated DLL, for custom software and automated test stations
PM 6023 plus ST datasheet (PDF)
